Slim Autoclave

5~10kgf/㎠

50~60℃ (±1℃)

Incorporating Customer specifications

2”~128” (LCD/OLED)

1-4 rows, 1-5 tiers configuration

Bubble removal
in various
display panels

ensuring safety
with a stacked structure
of small chambers

reducing pressurization
&
heating time
by minimizing
chamber volume

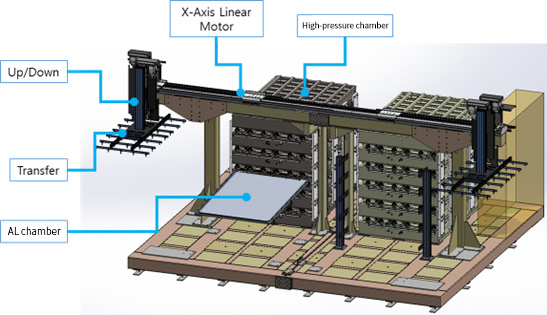

stable panel insertion
via
a sliding mechanism

Panel insertion and
extraction
through transfer

enabling flexible
process design
tailored to
customer needs

configurations
of logistics interface
with various equipment
between upstream
and downstream
processes

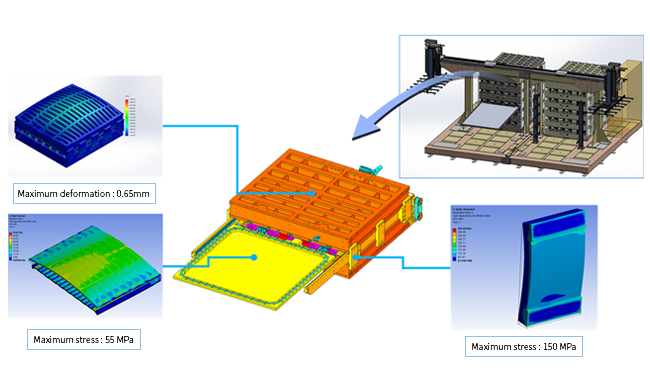

Simulation results of key components in the design

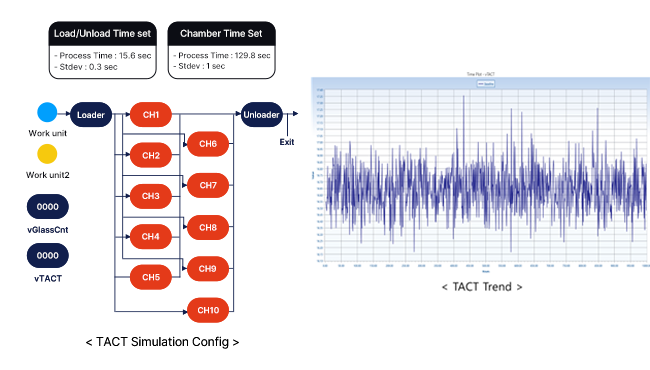

Capable of simulating based on process time and number of chambers

Component	Key advantage
Safety	Each chamber has a pressurized space that is about 1% the size of a tank autoclave
	It is exempt from safety certification
	poses no risk of explosion.
Utility Cost Reduction	Electricity consumption is half that of a tank autoclave
Utility Cost Reduction	Reduced CDA consumption compared to tank autoclaves (with a 2600L tank based on a 23-inch standard).
Logistics composition	Easy logistics configuration before and after the in-line process
	no need for dedicated pallets for return logistics and product stacking
	suitable for various display panels
	a strategic installation space plan.
Process design	Flexible process design
	excellent temperature and pressure uniformity
	various process condition settings for time, temperature, and pressure.
Maintenance	Standardized designs facilitate spare parts inventory management
Maintenance	essential safety stock is always readily available

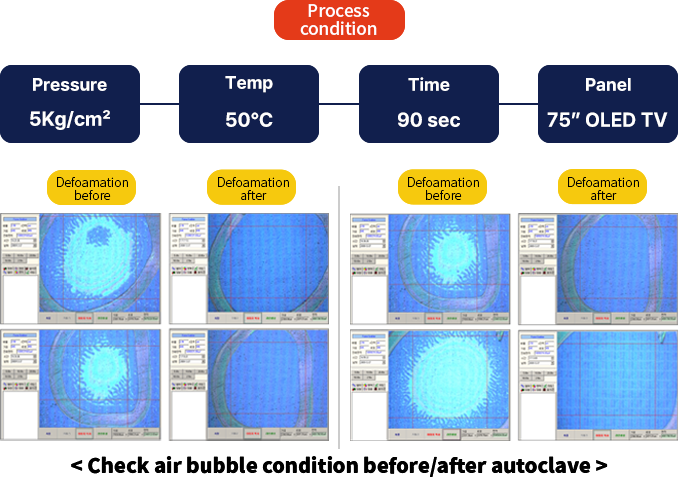

Bubble removal, heat treatment, and stress relief through isothermal high-pressure processing

Apply constant energy to substrate (Aging)

- Energy curing of the substrate results in enhanced adhesion, densification

- reduced bubble formation, improving optical properties such as transmittance and clarity
